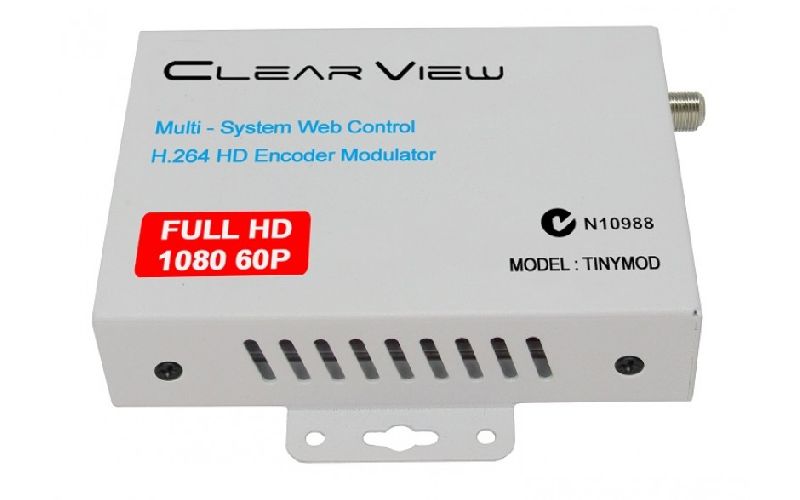

TINYMOD Multi-System MPEG4 HD Digital Modulator


TINYMOD Multi-System MPEG4 HD Digital Modulator

Product Details

Power 12V1A, adapter. 100-240VAC Adaptor included
Dimension 103 x 64 x 24 MM
Weight 390 grams
Power Source Electric
Pack Type Carton Box
Type 22mb/sec, 1080 60p
User Manual is Here View

Kristal Electronics based in Garbutt Townsville Queensland, AU is the best company for ordering modulators. We have products such as TINYMOD multi-system MPEG4 HD digital modulator for our customers and clients. The products of our company are certified and are listed at an affordable price. The TINYMOD multi-system has amazing benefits. Some are as follows:


Features :


• HDMI to HDTV Modulator up to 1080p


• Supports multi-digital TV standard


• MPEG4 for maximum quality


• Up to 22Mbits/sec encoding for ultimate resolution


• Tested on IQ2, 3 and 4 Live Fox Sports


• Lightweight and High Performance


• Control via Web GUI and Ethernet port


• Rack position for use with multiple units in an installation


Order our products today and get them delivered to your doorstep.


Yes! I am interested

Submit Your Requirement


Technical Details

 HDMI Input
 Video resolution -  NTSC, PAL
 720p, 1080i, 1080p
 Video encoding -  MPEG4
 Audio encoding -  MPEG1 Layer II / AAC /AC3
 RF Output
 Frequency Range  MHz  50-950, 1K steps
 Output level  dBμV  100 (70-100 adjustable)
 MER  dB  Typical. > 35
 Output Settings
 Standard -  DVB-T  DVB-C  ISDB-T
 Bandwidth -  6, 7, 8  8  6


 Constellation
-
 QPSK
16QAM
 64QAM


 64QAM
 128QAM
 256QAM

 QPSK
 16QAM
 64QAM

 Other setting
-  Code rate
 Guard Interval
 FFT

 Symbol rate
5000-9000 MS/sec
 Code rate
 Guard Interval
 FFT
 Menu Configuration
 Basic   RF output type / RF range/ LCN, Key ID/ Service Name, Rack Position
 Advanced  Video & Audio/ SID / PMT, VPID, APID/ NIT, ONID/ PDS/ TS ID/ RF output attenuation
